• FMX-004

Rango de medición hasta 30 kV

Portátil

Pantalla LCD

Funciona con pilas



El FMX-004 es un medidor de campos electrostáticos de bolsillo cómodo y compacto. Este medidor de campos permite medir y registrar la intensidad y la polaridad de los campos. Además, también permite realizar mediciones en lugares difíciles. Dos LED integrados indican la distancia de medición correcta. La carcasa de plástico conductiva, con toma de tierra integrada en el lateral, garantiza la precisión de las mediciones. Su exclusiva pantalla bicolor reproduce los valores medidos tanto en valores numéricos como en gráficas. Asimismo, en la pantalla también se indica el nivel de carga de la batería.

DIY, Home measuring kit

To find out if you have a problem that is related to static electricity you need to measure. Or better to let one of our local agents measure if you have a static electricity related problem. Correct measurement with a static measuring device can be difficult. Interpreting the meter reading can also be difficult. You need to take into account all the factors that can influence the static energy meter to interpret the values.



Measuring can be done with the Simco electrostatic voltmeter, the FMX-004 and the result is the static voltage in kVolt.

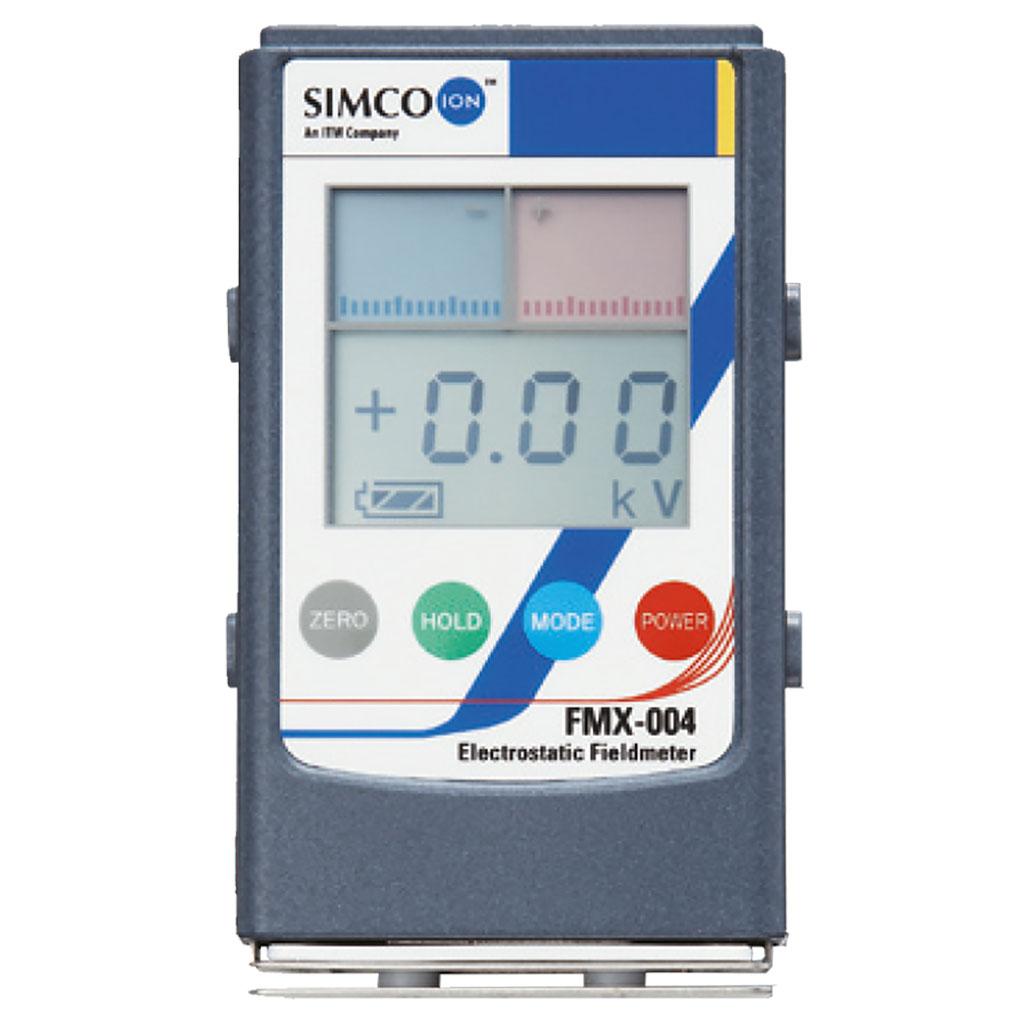

The Simco static meter FMX-004 is a convenient, compact and pocketsized handheld electrostatic fieldmeter. With this fieldmeter you can measure and store the field strength and polarity. It enables you to carry out measurements in difficult places. The correct measuring distance is displayed by two integrated LEDs.

The electrically conductive plastic housing with an earth connection fitted at the side ensures accurate measurements. The unique bicolour display shows the measured value both numerical and graphically. The status of the battery is shown on the display.

You can ask you local agent to measure with the electrostatic handheld static meter for you. Another option is to do it yourself with our convenient DIY, home measuring kit(request by chat/call). After measuring yourself Simco will help you to interpret the results by phone or video.

Simco Customer service can also help you to make the most of using the anti static meter. Also translating the results of the measurement into a solution will be supported upon your request. In most cases the use of static eliminators will help you to eliminate the static charge. This can be done by mounting an anti static device pointed at the charged spot or charged object.



And if you have a problem related to static electricity please check our solutions with the use of static eliminators!



  • Mediciones precisas
  • Carcasa de plástico conductor de electricidad con conexión a tierra
  • Posibilidad de realizar mediciones en lugares incómodos
  • Indicador del estado de la batería
  • Tamaño de bolsillo

Especificaciones técnicas

Rango0 - 30 kV pos./neg.
Precisión ± 10% 0-30 kV
Distancia de medición 25 mm (0 - 30 kV)
Ajuste cero Automático
PantallaPantalla LCD
Memoria
BateríaPila alcalina de 9 V
CarcasaABS conductivo
Peso0,17 kg
Temperatura ambiente 10 - 40 °C
EmbalajeCaja de transporte blanda, cable espiral de
puesta a tierra y adaptador para medir
el equilibrio iónico

Especificaciones del producto
