• External Control Kits

External control kits are intended for incorporation of manual control for various 24V DC Simco-Ion devices. They provide a potentiometer to control settings, an LED for visual control and in- an outputs.

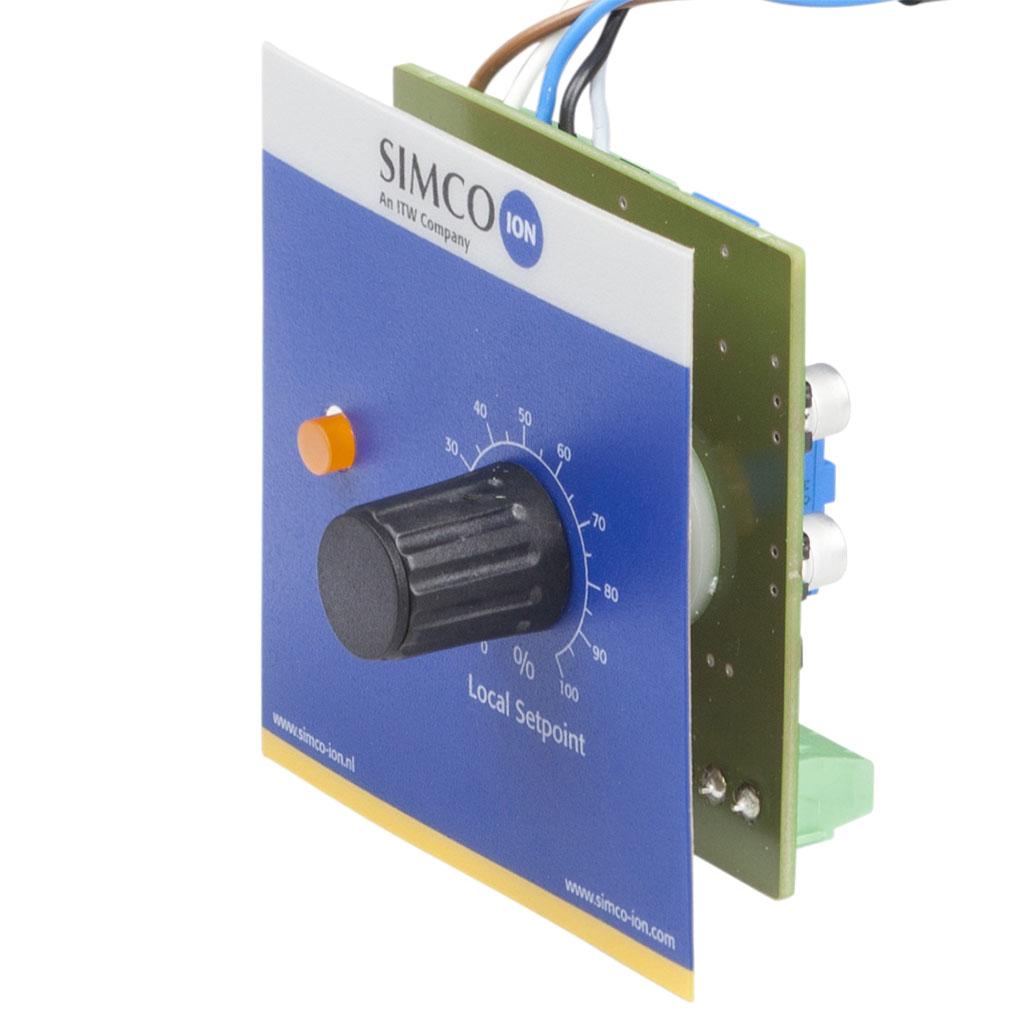

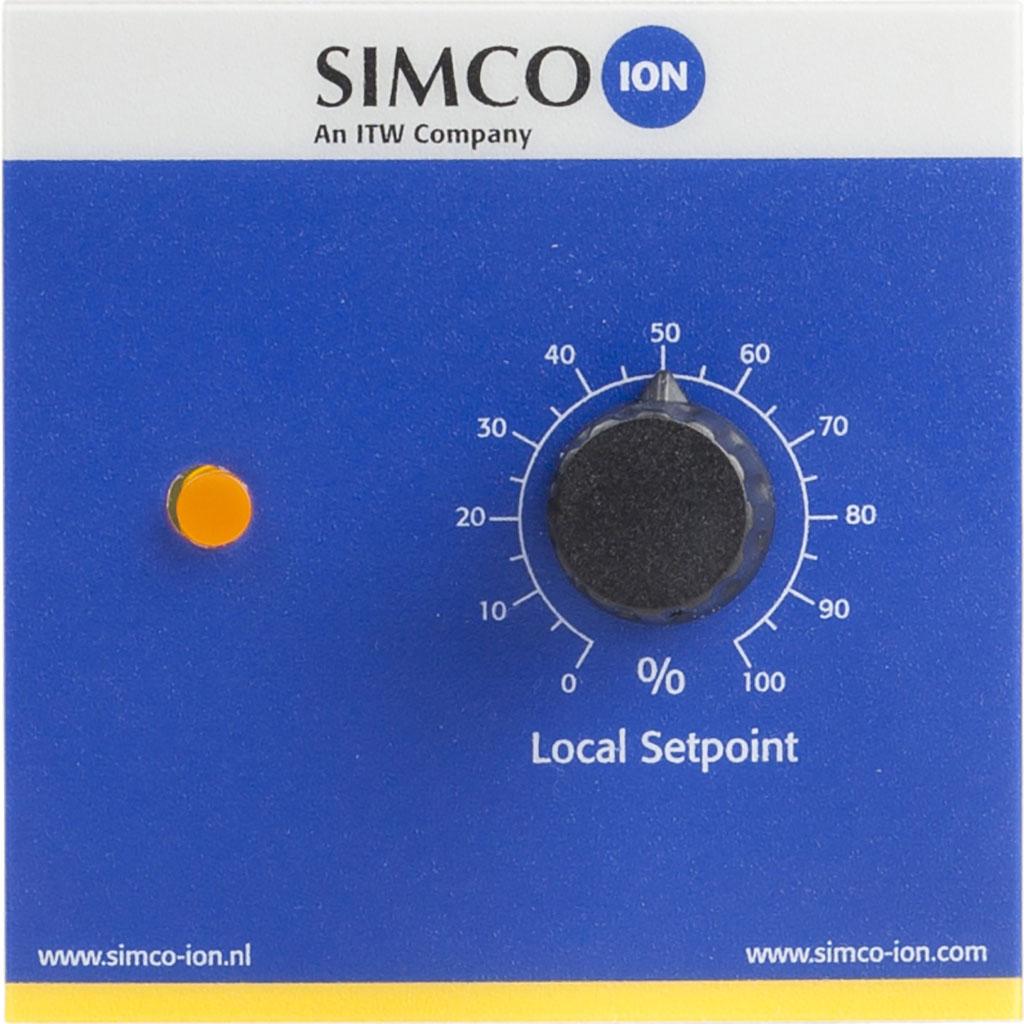

The kit consists of a small control board and a self-adhesive label. The control board can be easily mounted in a panel or separate box. The self-adhesive label is glued on the outside a form indicators and a scale.

Various kits are available with special functions for the individual products:





  • MPM – external ion balance control
  • Perfomaster – external setpoint control
  • CMME and CM Tiny – external setpoint control

Chat with an expert now!

Click on the chat button to immediately find the right solution for your problem regarding static electricity with one of our technical experts. You can both chat and video call with our customer service to describe your situation in the best possible way. No time to chat now? Send an e-mail to our customer service or call us: +31 (0) 573 288333. Would you prefer to contact your local expert? Then take a look at our representatives in your region here!



Especificaciones del producto

Email

Especificaciones técnicas

MPMPerfomasterCMME/CM Tiny
Inputvoltage0-10V/0-24V
Manual controls(-10)-0-100-100-100%
Remote on/off10-30 V DC max 20 mA
Cycle ok24V DC max 50mA
Setpoint feedback0-10V DC max 10mA
Remote setpoint0-20mA
Overload24V DC max.50mA
HV on
LED||Pulse detected|Orange cycle ok
PLC|24V DC max.30mA 15 ms||
