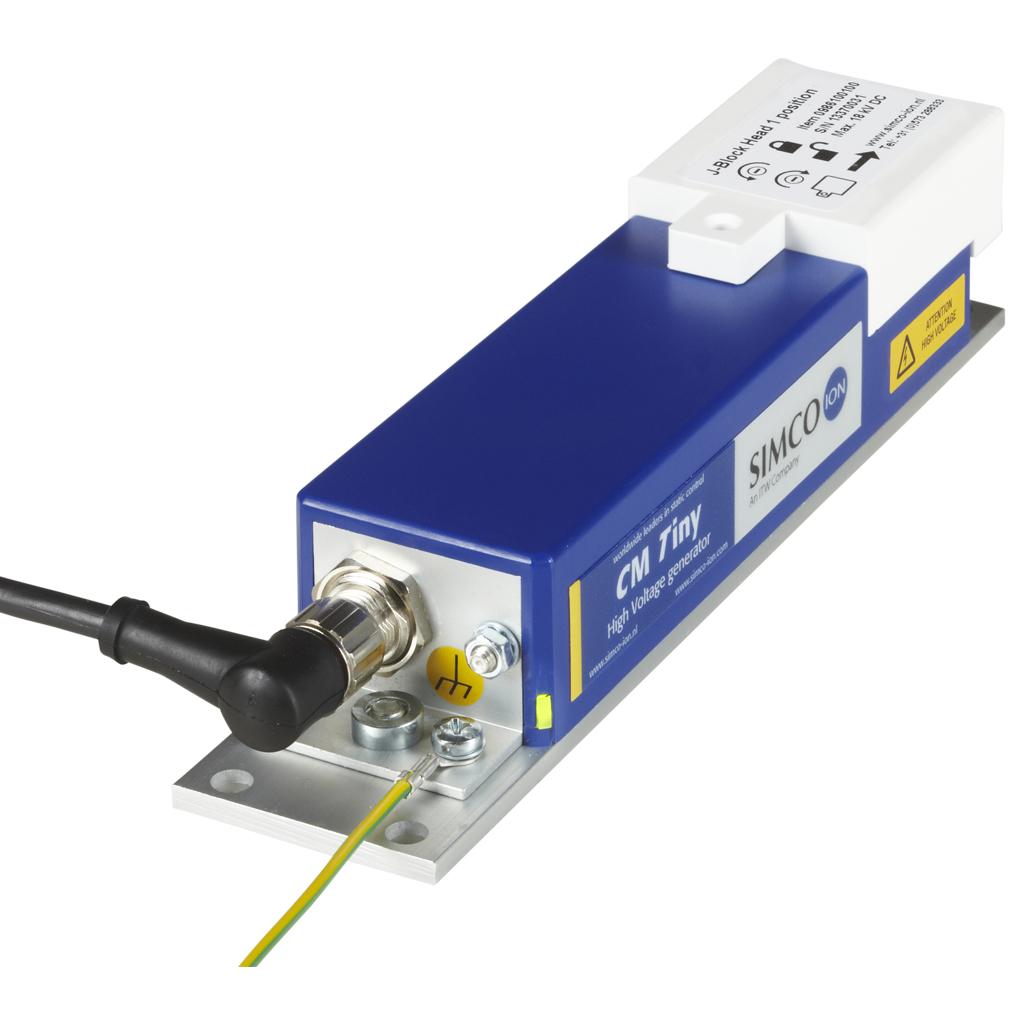

The CM Tiny is the smallest industrial charging generator for static bonding applications. The unit has fully integrated high voltage parts and only needs a 24V DC supply. The housing is compact, robust and only weighs 500 grams which makes it perfect for small machines and applications with moving parts s.a. pick and place handling systems. It can easily withstand the high G-forces occurring during the process.
Two LED’s on the side give clear indications of the status of the charging generator;
- Green: Power is on
- Green ﬂashing: Powers is on and HV output is inactive
- Red: Alarm, HV overload or HV Ok signal short circuit
The CM Tiny can be used directly from a machine interface capable of supplying a 4-20 mA signal for the setpoint and a 24V DC signal for remote on/oﬀ. Manual operation can be implemented by an additional control circuit. The control circuit enables you to mount a potentiometer and LED by simply providing 2 holes in the front panel of your machine interface. Connectionblocks with one or four outputs are available. For the use of the quick connect ports the charging electrode has to be equipped with a special connector.
There is a special version of the HDR bar available for connection to the CM Tiny.
Chat with an expert now!
Click on the chat button to immediately find the right solution for your problem regarding static electricity with one of our technical experts. You can both chat and video call with our customer service to describe your situation in the best possible way. No time to chat now? Send an e-mail to our customer service or call us: +31 (0) 573 288333. Would you prefer to contact your local expert? Then take a look at our representatives in your region here!
- Voltaje de alimentación 24V DC
- Diseño miniaturizado
- Compacto y robusto, capaz de soportar fuerzas G
- No hay cable de alta tensión que pase por el canal del cable
- Señal HV OK
- Bloque de distribución desmontable de alta tensión
- LEDs a ambos lados
- Controlado por microprocesador
- Control de consigna externo
- Señal remota on/off
- Versión IQ disponible
|Supply voltage||21-27 V DC|
|Electricity consumption||Max. 0,7 A|
|Setpoint||4 - 20 mA, 220 Ω internal resistance|
|Connection||M12 connector, 5-pin|
|Output voltage||0 - 20 kV negative|
|Output current||Max. 0,4 mA|
|Operating environment||Industrial, internal use|
|HV OK||Supply voltage -1 V (max. 50 mA)|
|Remote on/oﬀ||10 - 30 V|
|Dimensions (lxwxh)||200 x 45 x 36 mm|
|Weight||500 g (excluding high-voltage cables)|
|Vibration resistance||≤ 6 G, ≤ 7 m/s|
|Output connection||1 or 4 quick connect ports (Ø 6 mm)|
