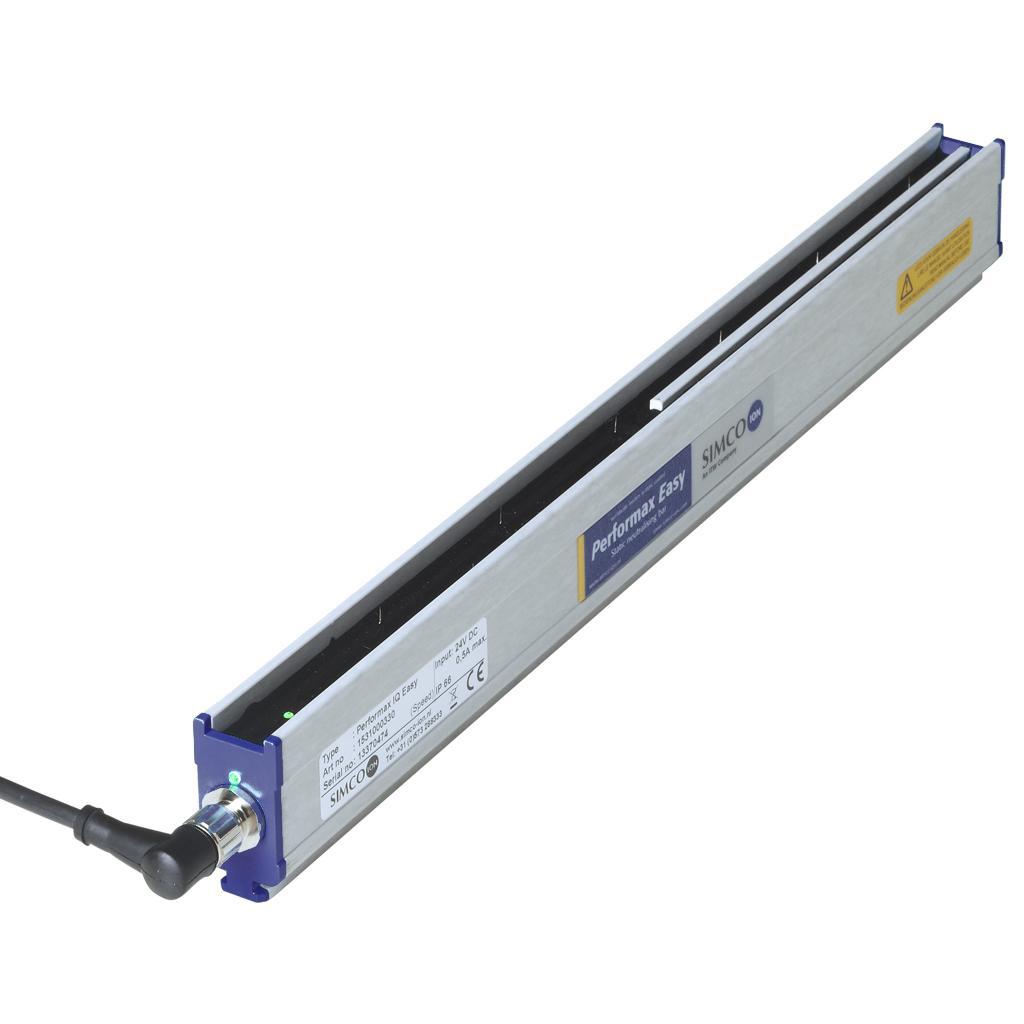

• Cortina de aire con barra antielectrostatica Performax IQ Easy



La cortina de aire con Performax IQ Easy es especialmente útil para las situaciones donde se necesita un método de ionización o limpieza móvil, como, por ejemplo, la limpieza de componentes utilizando un robot. La conexión de 24 V facilita la instalación en este tipo de aplicaciones. De serie, la cortina de aire con Performax IQ Easy está disponible en 4 longitudes: 150, 310, 460 y 610 mm. Pueden realizarse combinaciones más largas bajo petición.

Chat with an expert now!

Click on the chat button to immediately find the right solution for your problem regarding static electricity with one of our technical experts. You can both chat and video call with our customer service to describe your situation in the best possible way. No time to chat now? Send an e-mail to our customer service or call us: +31 (0) 573 288333. Would you prefer to contact your local expert? Then take a look at our representatives in your region here!



  • Working distance: 3000 mm max
  • Removes dust and other contaminations and neutralises the static charge and prevents retraction contaminants
  • Installation possible on moving machine parts such as a robot arm
  • Shockless touchable emitters

Especificaciones técnicas

Working distance3000 mm max.
Working widthStandard: 150 310 460 610 mm,
lengths upto 610 mm on request
Housing materialAluminium/Reinforced plastic
Inner bar materialPotting
Emitter pinsSpecial alloy
CableLow voltage cable
Weight4 kg/m
Ambient temperature0 - 55°C
Use circumstancesIndustrial
Operating voltage24 V DC
Air consumptionOn request
PressureMax. 10 bar
Airconnection1/4” BSP
