• HD Det

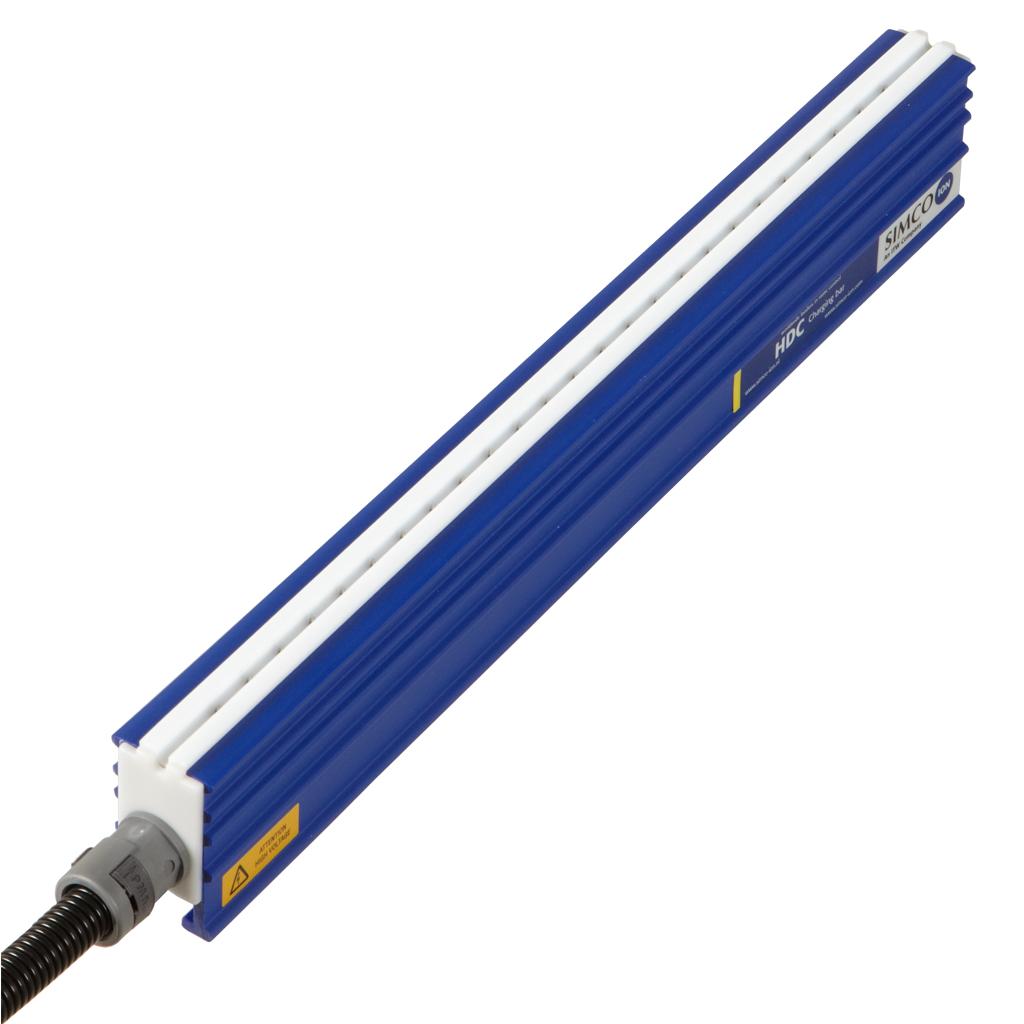

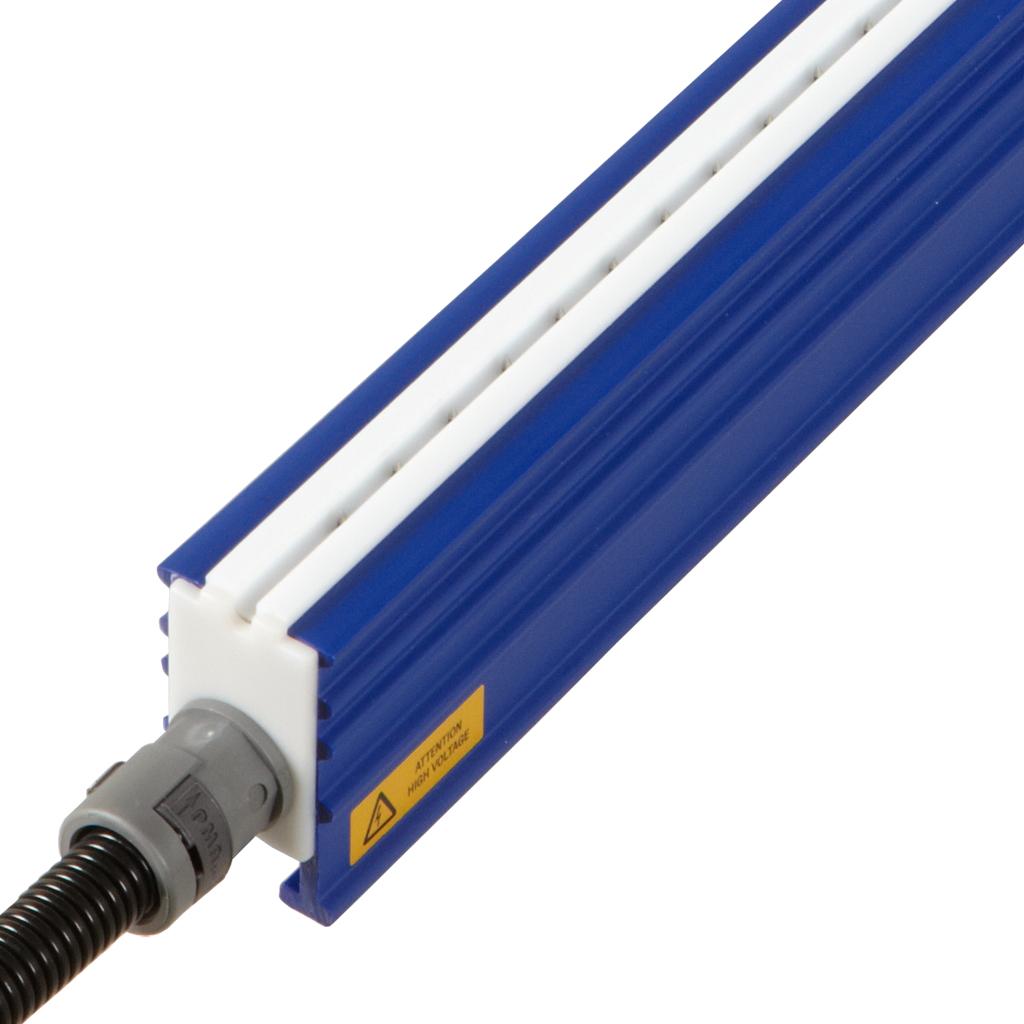

In order to detect perforations in a moving material web, this special electrode is equipped with a resistance per emitter. When a perforation passes the electrode, there will occur a controlled spark over. This is detected by the associated CM5 high voltage generator and is communicated with an output signal and the flashing of the red LED.

Chat with an expert now!

Click on the chat button to immediately find the right solution for your problem regarding static electricity with one of our technical experts. You can both chat and video call with our customer service to describe your situation in the best possible way. No time to chat now? Send an e-mail to our customer service or call us: +31 (0) 573 288333. Would you prefer to contact your local expert? Then take a look at our representatives in your region here!


  • Detection of perforations over a large area
  • Detection of very small perforations possible

Especificaciones técnicas

CableCable de baja tensión, conector M12 estándar
Alimentación de entrada 24 V CC, < 0,5 A
Puntos emisores Aleación especial
Frecuencia máx. de detección 25 Hz
SeñalLED multicolor:
- Verde, funcionamiento correcto
- Rojo, perforación detectada
Salida de señales Optocoplador
Tensión de mando 0 - 10 V o 0 - 24 V
Temperatura ambiente 0 - 55 °C
Circunstancias de uso Industrial
Clasificación de protección IP 54

Especificaciones del producto


Haga clic aquí para ver a nuestros representantes en su región!


Manual del usuario


Esquema técnico


3D CAD STEP file
